PEEK 3D printing service

Produce chemical and heat-resistant 3D parts on demand. PEEK offers unrivalled mechanical strength, ideal for various high-performance industrial applications.

5/5

Heat-resistant plastic parts

For when mechanical quality is non-negotiable. PEEK is an advanced thermoplastic polymer 5x lighter than steel, yet the same strength by volume.

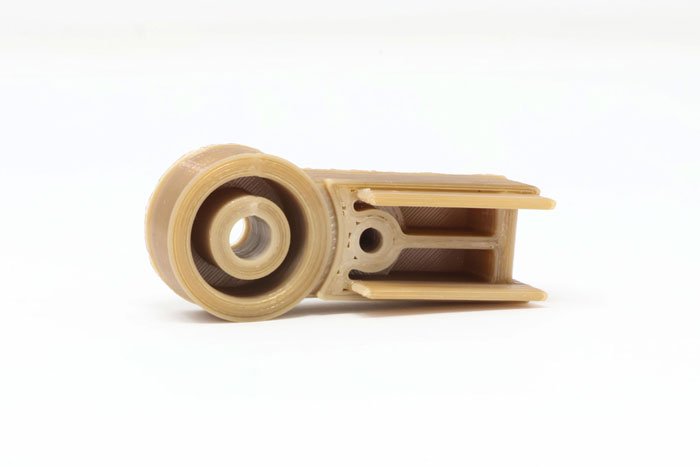

an engineering component in PEEK

PEEK

One of the premier plastics available for FDM 3D printing.

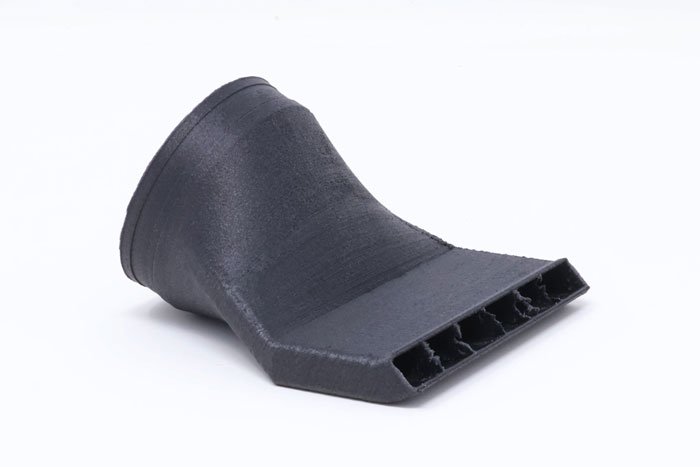

PEEK CF used for an industrial part

PEEK CF

PEEK reinforced with Carbon Fibre for enhanced mechanical properties.

What is PEEK 3D printing used for?

Aerospace

Super lightweight and flame-retardant. Popular for flight control & fuel system components.

Automotive

PEEK is a good solution for under-the-hood parts that must withstand high temperatures.

Medical

Surgical instruments, healthcare devices, and implants all make use of this biocompatible 3D printing material.

Common PEEK 3D printed parts

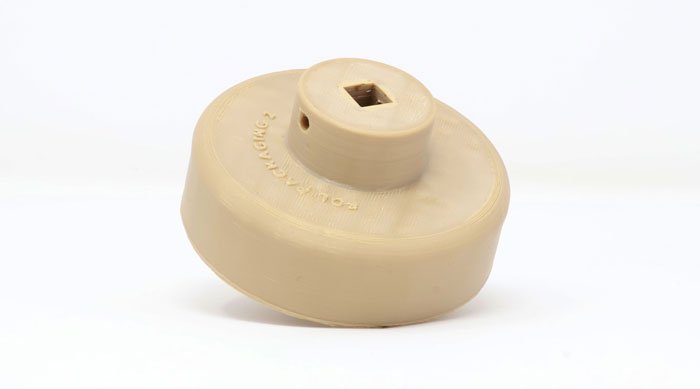

A heat-resistant fixing made with PEEK filament

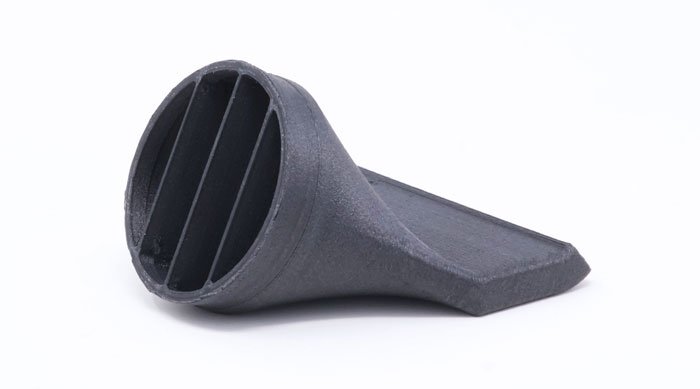

A heat exchanger component made in PEEK CF

When PEEK CF is more suitable

POST-PROCESSING

Upgrade your PEEK parts with annealing

For a small additional charge (£55 per unit), your components can be annealed to significantly boost mechanical integrity. This typically adds one extra day to the manufacturing time.

The process involves meticulously heating and cooling your print to de-stress the plastic and improve its structural stability. It also removes imperfections, leaving a lighter, cleaner finish.

Engineering-grade materials

Technical data

PEEK specifications

Material Properties Test Method Typical Value
Tensile strength at yield ISO 527 97 MPa
Elongation strain at yield ISO 527 5%
Tensile (E) modulus ISO 527 3800 MPa
Flammability behaviour UL94 V-0
Heat deflection temp ISO 75 145°C

PEEK CF specifications

Material Properties Test Method Typical Value
Tensile strength at yield ISO 527 126 MPa
Elongation strain at yield ISO 527 3.9%
Tensile (E) modulus ISO 527 7800 MPa
Flammability behaviour UL94 V-0
Heat deflection temp ISO 75 280°C

PEEK alternatives

Not sure if PEEK is right for your project? We offer a range of industrial and engineering-grade materials to suit all budgets and use cases.

Ultem 9085

PEI filament offering high-performance characteristics at a lower price tag.

Strength

Temperature

Chemicals

Price

Nylon PA6

An affordable option for slightly less demanding engineering components.

Strength

Temperature

Chemicals

Price

SLS technology

Robust prints with Nylon PA12. Great for complex designs.

Strength

Temperature

Chemicals

Price

Frequently asked questions...

PEEK (Polyether Ether Ketone) is a semicrystalline thermoplastic polymer known for its exceptional mechanical, thermal, and chemical resistance properties. It exhibits excellent strength and stiffness, even at high temperatures, making it suitable for demanding applications in industries such as aerospace, automotive, electronics, and medical devices. PEEK is often chosen for its ability to withstand harsh environments, including exposure to chemicals, radiation, and high pressure. Its versatility, biocompatibility, and ease of processing through methods like additive manufacturing make it a preferred material for a wide range of engineering applications where reliability and durability are paramount.

PEEK CF is infused with Carbon Fibre to offer a different set of mechanical properties.

PEEK CF is stronger, able to perform at higher temperatures, and boasts greater electrical and thermal conductivity.

Standard PEEK is suited to applications requiring high insulation, deformation before rupture, and magnets.

On the other hand, PEEK CF is favoured for high-temperature applications, high-load-bearing parts, and functional items that need lower friction.

Annealing is an optional extra and completely up to you. Annealed PEEK offers the greatest possible mechanical properties of any of our materials (even more so than PEEK CF when it comes to tensile strength and dimensional stability). If appearance is important to you, annealing will also remove most roughness and irregularities, leaving a cleaner surface finish.

Yes, PEEK filament boasts high chemical resistance to a broad array of chemicals, even at high temperatures.

This makes it perfect for energy, oil, and gas applications, especially when combined with the added heat resistance provided by PEEK CF.

Though PEEK filament itself can be considered food-safe, the FDM printing process is not. For this reason, we cannot guarantee that any items we produce in PEEK will be fit for use in applications where food safety is a necessity.

Our PEEK 3D printers have a maximum volume of 260 x 260 x 260 mm.

With that said, larger models can be printed in sections for you to join together.

Lets Talk

If you’d like to talk more about PEEK and our other materials, please get in touch. We’re ready to answer any questions you might have.
