3D Scanning for Jigs
Jig 3D Scanning Services
bespoke jig Manufacture
Do you need to create a jig or manufacturing aid for maximum efficiency and safety? Our 3D scanning services can help you create a bespoke jig very quickly and ergonomically. Our 3D scanners can produce a bespoke model with very accurate dimensions. Coupled with our 3D printing service, you can create bespoke jigs very quickly and efficiently. Saving you time, money and improving worker safety.
If you need a jig, manufacturing aid, or custom tooling for your lean manufacturing business please get in touch. We can advise on the simplest and most effective way to create a jig meets your requirements. Â
Lets Talk
We’re ready to answer any questions you have…
3D scanning large objects
When 3D scanning large items we use our handheld mobile scanners. This type of scanner is suitable for objects from the size of a kettle up to the size of a truck. This type of scanner is mobile, so we can visit your site to carry out the 3D scan. It captures very fine details and it perfect for replicating larger objects. We also offer heritage preservation 3D laser scanning. Â
3D scanning small objects
For smaller objects, we use desktop 3D scanners. They are perfect for smaller items and range from around 30mm up to roughly 350mm. These scanners are part of our in house service. Small items are mainly posted out to us. It works well for cogs, clips, jewellery and other small but detailed objects.
Recent 3D Scans
bumper
This is an unedited digital 3D scan of a ford front bumper. The holes on the bumper are from markers to aid with 3d scanningÂ
The client wanted to use the data for several different reasons. The main aim was for fixing locations and modifications.
MG Ashtray

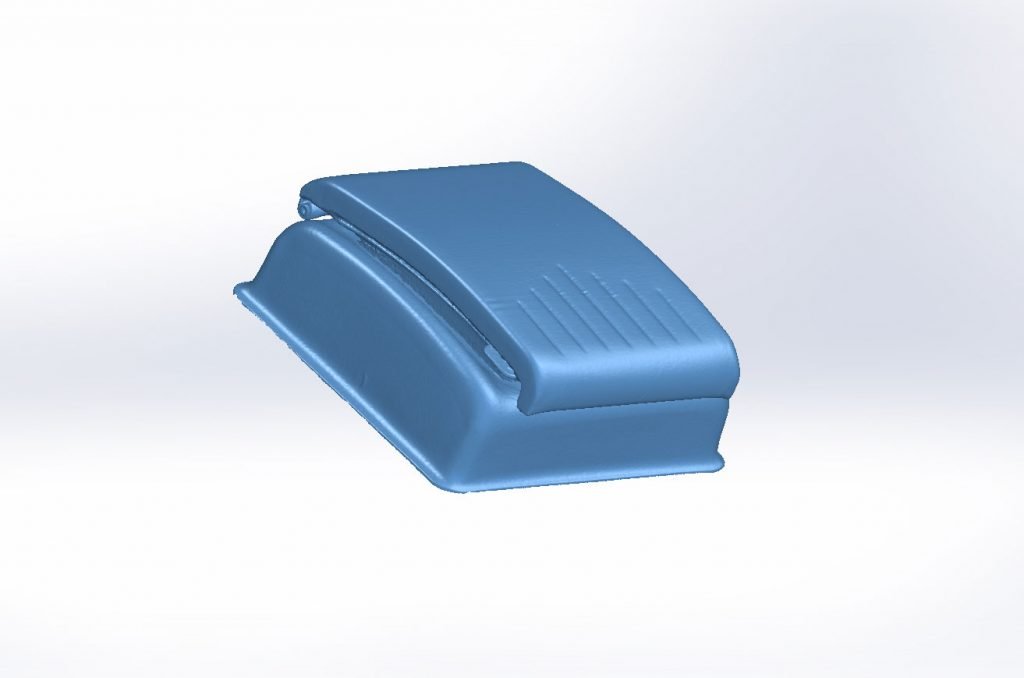

A customer took advantage of our 3d scanning services to create a mount for the cars main badge to fit to the ashtray. We 3d scanned the ashtray and the badge to capture the curves of both, and we then used our SLA 3d printers to create a mount to create what looked like an OEM badge mount.
Chopper Frame
We used our mobile 3D scanning service for Raw Steel Choppers to digitally scan this rare chopper frame.Â
They were asked by one of their customers to reproduce the frame and make any modifications need and the data sent to a CNC company.
death penny

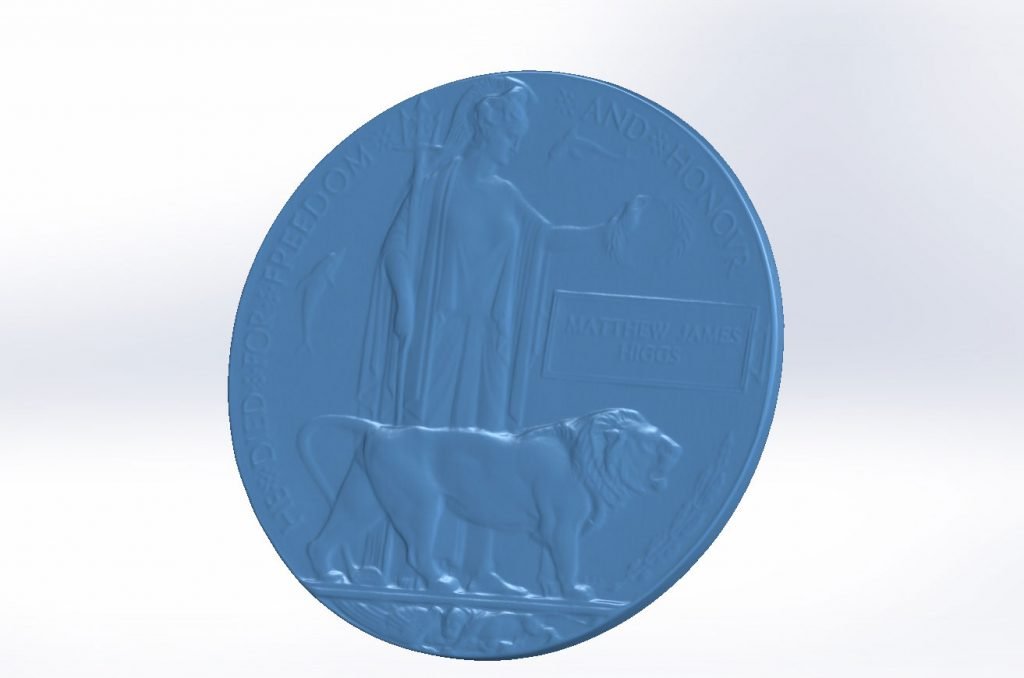

Here we used our desktop scanner for this world war one death penny. The customer wanted to reproduce the coin for so they could have their own copy. The coin was 3d Scanned with our desktop 3d scanner, we then cleaned the data ready for printing. The coin was 3d printed on one our resin printers.
Advantages of 3D Scanning
Saves time when designing products – If your product design is based on an existing object, then 3D scanning can capture every detail of the part. Providing you with the data to design a matching part that fits perfectly. Or if you are altering a current design, you can use our 3D scan data as a good starting point.
Simplify the prototype process – Our 3D scanning services can reduce the number of prototype cycles needed. You can also compare the 3D scan data between each version. The 3D Scan process will also highlight any design flaws.
Improved Quality Control – You can use the 3D scan data to check the quality of your product. You can also check the scale and stability of the product. It is perfect for the manufacturing process whether it’s 3D printing, CNC milling or injection moulding, you can spot deviations immediately and rectify them easily.
Re-manufacture parts without CAD Drawings – Want to re-manufacture parts but don’t have the original drawing? By using our 3D scanning services, you can create an exact drawing within hours. By reverse-engineering the scan data you can design a new product. You can then compare the drawing for the old and new products.
Keeping costs down – All of the above points save time during the designing, prototyping and manufacturing process. As we all know time is money. Utilising our 3D scanning services can make the design to manufacture process 75% faster, and therefore 75% cheaper!
Learn more: Everything you need to know about the 3D scanning process.
Already have your scan data? – If you already have your scan data but need it reversed engineered and maybe 3D printed, check out our 3D services page.
Scan to CAD
Our 3D scanning service is ideal for CAD users. We can capture exact detail using our 3D scanners. Then transfer this data into a 3D solid CAD model. 3D scanning is a much faster and more accurate way to collect data. Saving you time and money.
If you work in CAD and want to measure an obsolete part this can be quite difficult. By using our 3D scanning services, we can create an accurate drawing within hours. This type of data is almost impossible to recreate by hand. We can provide you with accurate 3D scan data for a relatively low cost.
Lost CAD drawings are now a thing of the past. We can provide you with this information from a physical part. If you ready to find out more about our 3D scanning services to CAD, then please get in touch.
Aerospace, healthcare, and furniture companies often incorporate this into their workflow.Â
Reverse Engineering
Our 3D scanning services and reverse engineering services work hand in hand. You can utilise the scan data to streamline the manufacturing process.Â
We will reverse engineer the data. You can design a part to fit on to the original part.Â
You can also redesign and improve upon the original object and remove design flaws from the original part.Â
Do you want to make your designing and manufacturing process more accurate and much simpler? Manufacturing better quality and more accurate parts? Then our 3D Scanning Services is the service you need.
If you would like to find out more, please get in touch to discuss your bespoke jig requirements.Â
